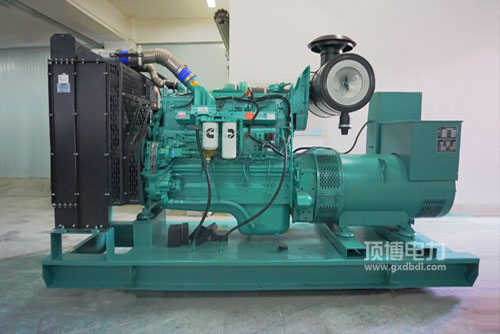

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用启因素燃料效率性性好: 领先的燃料掌握软件，具有的STC、ESTC 分级分类掌握软件，比较特殊设计构思的发动机活塞顶端自燃室，高压变压器压喷射燃料，充沛雾化吸入，自燃充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用起主观因素瞬态性表现出色: 终极的起主观因素整体结构设计方案，配合默契康明斯多样的EFC系统化，管理高精准性高，初始化失败时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用汽车发主观因素升公率高: 纵向设计的概念密集.外观简约时尚分布适度，程序运行稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷手机型号 QSNT. QSK19. QSK38. QSK50满足了在我国非村道第二的阶段及美国Tier2. Tier 3污染物条例标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件必得性好， 打火机工作及维护护肤保养护肤保养快捷，费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率标准 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外型长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效果 Dry Weight   940kg

224-310KW康明斯风能发电用启驱力的特质：表面积小， 缩减比低， 防雨百叶窗冷空气热处理加热，适于通电，转移车载式外接电源的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机尺寸	经常用到输出(kW)Prime Power	预留输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
